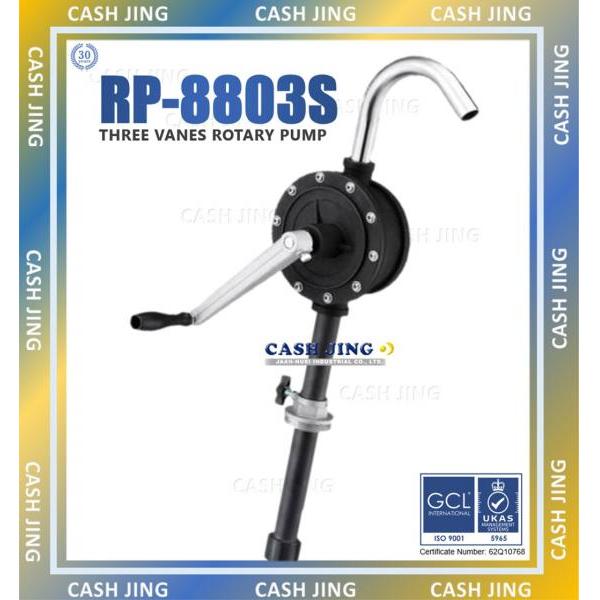

Three Vanes Rotary Hand Pump (PPS)

Product ID: RP8803S

• Made from advanced Non-oxidation and Rust-resistant materials-Stainless Steel and PolyPhenylene Sulfide (Ryton).
• Ideal for transferring soluble, corrosive, volatile and aggressive chemical, such as Esters, Alcohols, Alkali, Acids, Hydrocarbons and other fluids are compatible with pump component materials.
• Also suitable for transferring Petroleum based fluids, Transmission Fluid and water based chemicals.
• Supply with 2" bung adapter and 3-piece plated steel suction tube to fit most 15, 30 and 55 gallon drums.
• Self-priming unit , dispenses approximately 400 ml per stroke.

  • Print friendly
Category: High Flow Pump (Plastic)

• Pump Type: Rotary - 3 Vanes
• Flow: 400 ml / Rotation
• Maximum Fluid Temperature: 140˚F / 60˚C
• Mounting: 2" MNPT Bung Adapter
• Suction Tube Length: 40" Maximum
• Inlet: 1-1/4" O.D.
• Outlet: 1" O.D. Curved Spout
• Wetted Parts: PPS, 304SS & PTFE
• Maximum Viscosity: 2,000 SSU
• Option: Polyethylene Extension Hose

• Standard Packing: 6 pcs/ctn, NW: 18.0kgs, GW: 19.0kgs, Cuft: 2.5'

  • Minimum Order: A Full Carton
  • FOB: Taiwan
